Description
Field of application

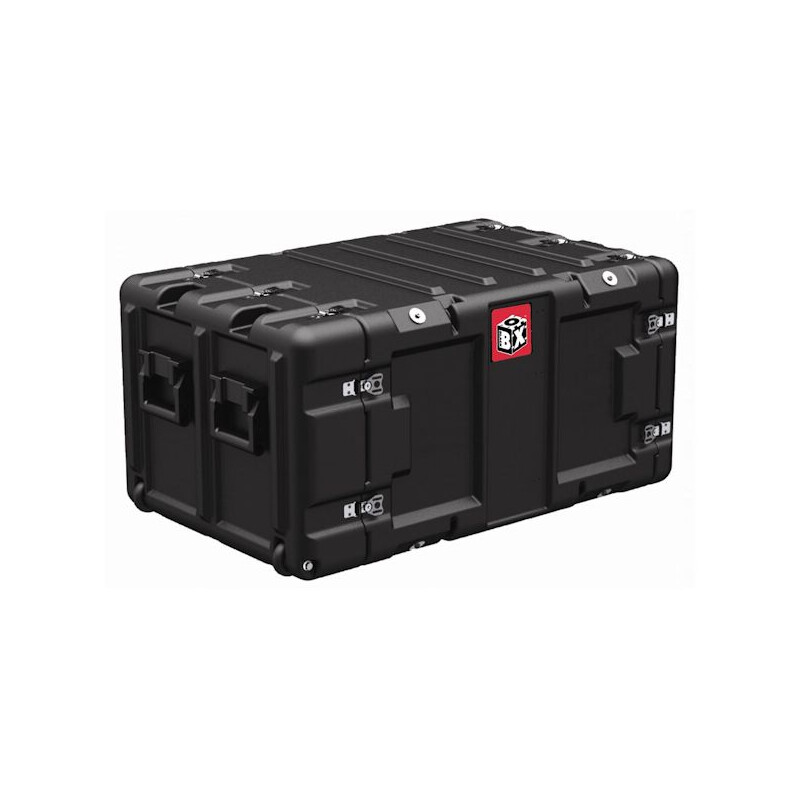

- The Peli™ Hardigg BlackBox Rack Mount Case 7U is the simplest solution to protect your high quality equipment from environmental adversities during use, transport or storage.
- Fields of application: Satellite communication, radio communication, measurement technology, film production, event technology and wherever a 19" rack is used.
Product features
- Suitable for 19" (483mm) slide-in racks.
- 7 height units (7HE) / 7 units (7U)
- The 50 mm long vibration dampers are designed for an installation weight of up to 45.35 kg
- M6 thread for fastening the racks (fulfils the specification: ANSI/EIA-310-C)
- Air and water tight
- O-ring seal in the covers
- Spring-loaded comfortable plastic handles
- Non-reflective black stainless steel fittings
- Castors in the rear lid
- Lateral lid suspension
- Automatic pressure equalisation valve
- Moulded stacking ribs for safe and non-slip stacking (only with identical racks)
Information on product safety
Manufacturer information:
Peli Products, S.L.U.
c/ Provença 388
Barcelona, Spanien, 8025
support@peli.com
c/ Provença 388
Barcelona, Spanien, 8025
support@peli.com
| Item information | Value |
|---|
Technical Specifications
- External dimensions
- 978 x 625 x 467 mm
- Vibration dampers
- rated for an installed weight of 45 kg
- Rack width
- 483 mm (19")
- Rack height
- 311 mm (12.25" / 7U)
- Rack depth
- 610 mm (24")
- Rear cover
- 132 mm
- Front cover
- 56 mm
- Weight
- 23.10 kg
